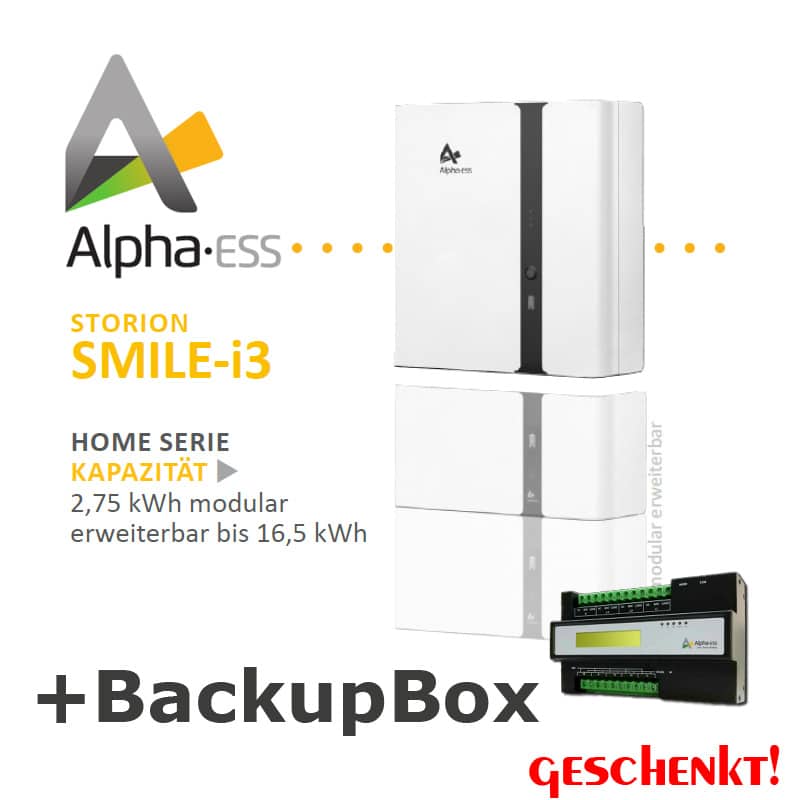

SMILE-i3 modular energy storage system
All-in-one storage system
- Modular design
- Integrated battery
- Simple installation
- Low maintenance effort
- Multilevel EMS and BMS
- AlphaCloud for 24/7 monitoring
- 5-year all-risk insurance optional
Battery inverter
- UPS capability
- WiFi
Battery
- Li-iron phosphate cells
- max. Charging current 1C
- Up to 25 years performance guarantee
Energiespeichersystem Alpha EES SMILE-i3 | |
| Max. AC-Nennleistung | 3.000 W |
| Max. AC-Scheinleistung | 3.000 VA |
| Max. AC-Eingangsleistung | 3.000 W |
| Nutzbare Kapazität | 2,75 kWh |
| Zelltechnologie | LFP (LiFePO4), kobaltfrei |
| Schutzart | IP21 |
| Abmessung (B x T x H) | 610 x 236 x 625 mm |
| Gewicht | 45 kg |
| Umgebungstemperatur | -10°C bis 50°C, optional 10°C bis 50°C *** |
| Produktgarantie | 5 Jahre Wechselrichter, 10 Jahre Akku |
| Leistungsgarantie Akku | 15 Jahre* linear, auf 25 Jahre erweiterbar |
Wechselrichter Alpha EES SMILE-i3 | |
| Modell | SMILE-B3-INV |
| Max. AC-Eingangsstrom | 13 A |
| AC-Nenneingangsspannung | 230 V |
| Batteriespannungsbereich | 40-58 V |
| Max. Lade-/Entladestrom | 60 A |
| Max. Lade-/Entladeleistung | 3.000 W* |
| Netzanschluss | einphasig / 3-Phasenkompensation |
| Nennspannung | 230 V |
| Netzspannungsbereich | 180-270 Vac |
| Netzfrequenz | 50/60 Hz |
| Notstromfunktion | USV |
| Netzregulierung | VDE-AR-N 4105:2018-11, G83/2, TOR Erzeuger |
| Sicherheit | IEC 62040-1, IEC 62477-1 |
Batterieerweiterung Alpha EES SMILE-i3 | |
| Modell | SMILE-i3-BAT-2.75 |
| Nutzbare Kapazität | 2,75 kWh |
| Nennspannung | 51,2 V |
| Umgebungstemperatur | -10°C bis 50°C, optional 10°C bis 50°C*** |
| Gewicht | 42 kg |
| Abmessung (B x T x H) | 610 x 236 x 303 mm |
| Ladezyklen | unbegrenzt* |
| Max. Lade-/Entladestrom | 56 A (1C) |
| Modulanzahl | max. 5 zusätzlich (zur im System integrierten Batterie) |
| Zertifikate | UN38.3, IEC 62619 |
| Nachrüstung nach Inbetriebnahme max.**** | 36 Monate |
| * Im reinen PV-Betrieb. ** Ohne Zusatzbatterie max. Lade-/Entladeleistung von 2,75 kW. *** Wenn die Zelltemperatur den Bereich 10-50 °C unter- oder überschreitet, verringert sich die Batterieleistung automatisch. **** Verfügbarkeit vorausgesetzt. | |
The most important features at a glance:
Functionality AC coupled
State-of-the-art lithium battery technology
Alpha ESS only uses LFP batteries to ensure safe operation and a high number of cycles - and of course also because of their superior service life, high level of safety and better environmental compatibility.
Scope of delivery
Your energy storage system comes as a complete package ready for connection and can even be installed by a single person thanks to its compact design! It includes all the necessary components at no extra charge - inverter, batteries, cable box, BMS, EMS and, on top of that, a free online portal and an app for a good overview.
Emergency power function
Even in the event of a power failure, the sun's energy is available to you free of charge. Enjoy your own electricity even during power outages and faults or when working in and on the power grid! The SMILE-i3 supports UPS and also enables load management in the event of a power failure
Free online portal & app
Live network monitoring of the power generated by the PV system, consumption, battery charge status and feed-in to and consumption from the grid - in the online portal or in the practical app. Simply log in with your Alpha ID!
