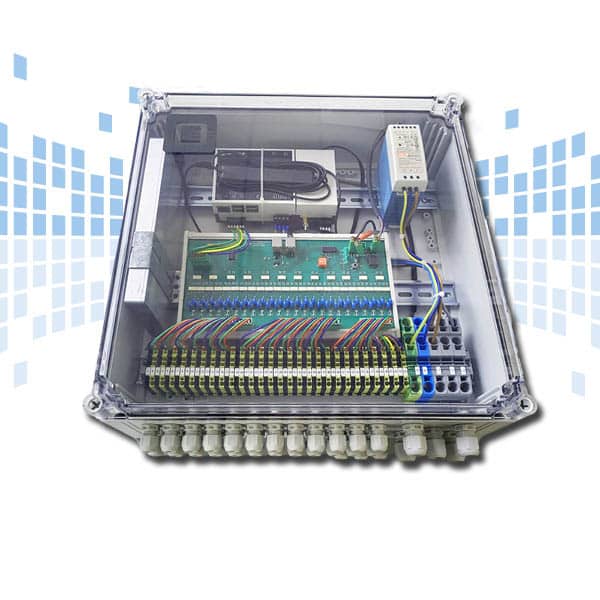

Monitoring of transformer stations
- Measuring unit for transformers
- Digital monitoring of transformer stations
- Data transmission via radio (GSM | LoRA WAN)
- LAN interface (e.g. for maintenance work)
- Optionally up to 32 measurement inputs with up to 600 A
- Additional 5 V DC power supply on board for connecting external devices
- Folding transformer: Connection via spring terminals or pluggable from outside
- Data backup: The system is buffered by a battery and can continue to transmit data for up to 24 hours in the event of a power failure
- installed in IP67 polycarbonate housing with transparent cover
§14a EnWG - Controllable consumption device - Measuring unit for transformers
Our measuring unit for transformers can measure 8x 3 current paths (L1, L2, L3 each), circuits or 24 power lines up to 600 amperes via hinged transformers, namely the following values:
- Voltage L1, L2, L3
- Frequency
- Power x24 cables
- Cosine Phi of each line
- thus also the current direction
- Active power, apparent power, reactive power
Technical drawing of transformer box for monitoring transformer stations
Further information on our measuring unit for transformers in accordance with §14a EnWG
Further information is currently being prepared. We will be happy to send them to you after completion (January 2024) - to whom may we send them?
Further information on our measuring unit for transformers in accordance with §14a EnWG for monitoring transformer stations
