Super Multi Box – Smart DC Combiner with PV String Fault Discriminator
Patent-pending string fault discrimination to ensure system availability in ground-mounted PV systems up to 1,500 V DC.
No more complete system failures due to insulation faults.
Smart DC Combiner with String Monitoring for Utility-Scale PV Systems
Super Multi Box Applications – Smart DC Combiner for Utility-Scale PV Systems
The Q3 Super Multi Box is an intelligent DC combiner with string monitoring, fault localization and electronic DC disconnection for utility-scale PV plants and central inverter systems.
It is used wherever many PV strings need to be combined on the DC side, monitored and, if required, evaluated or disconnected selectively. Typical applications include solar parks, large commercial PV systems, industrial projects and ground-mounted PV plants with central inverters – especially where high availability, fast fault detection and a clearly structured DC concept are required.
The Super Multi Box is particularly useful in systems where several strings are routed to one central inverter and where a single string fault, insulation fault or abnormal measurement value must not lead to a complete plant shutdown. By monitoring at string level, deviations can be detected faster, fault areas can be narrowed down more effectively and affected strings can be identified more precisely.
Unlike a conventional DC combiner, the Super Multi Box does more than simply combine PV strings. It combines DC connection technology, string monitoring, protection components, electronic DC disconnection and remote access in one project-specific solution for large PV systems.
The goal is higher system availability: faults are not only detected at inverter level, but can already be narrowed down more effectively on the DC side.
Ground-mounted systems, Agri-PV, and PV power plants in the MW range
Central inverter architectures – ideal for 1-MPPT systems
Selective fault isolation and string shutdown to ensure system availability
How does the Super Multi Box detect faults in PV strings?
In large PV systems, the inverter is often not able to clearly assign a fault to one individual string. It may detect deviations, insulation faults or reduced yield, but often only at the level of the MPPT, the collecting line or the entire DC input. For troubleshooting, this means that the affected area has to be narrowed down on site, often with considerable effort.
Read more →
This is exactly where the Super Multi Box comes in. It monitors the individual PV strings and makes deviations visible at string level. Abnormal strings can therefore be identified and checked more quickly. This can include reduced output, unusual current values, string failures or indications of faults in the DC field.
In the case of insulation faults, the Super Multi Box can also support fault localization depending on the project concept. Instead of keeping the entire plant permanently out of operation, strings can be evaluated or disconnected selectively. This makes it easier to determine which string or which part of the system is causing the fault.
For operators and service teams, this is a decisive advantage: troubleshooting does not start with manual measurements across the entire generator field, but with specific information from the DC combiner.
Why is string monitoring important in central inverter systems?
Central inverters are frequently used in utility-scale PV plants because they bundle large DC power levels and are economically attractive for solar parks or large commercial PV systems. At the same time, this creates a high level of concentration on the DC side: many PV strings are combined before they reach the inverter.
Read more →
Without string monitoring, the inverter often only sees the aggregated values. A single weak, failed or faulty string may therefore be detected much later – or only indirectly through reduced yield, an insulation message or a service intervention.
String monitoring creates transparency here. Each monitored string provides additional information about the condition of the DC side. Deviations between strings become visible earlier, and troubleshooting can be carried out in a more targeted way.
This is especially important in utility-scale PV plants with many strings, long cable routes and large generator fields. Every hour of downtime or reduced performance has a direct impact on yield. An intelligent DC combiner with string monitoring helps detect faults earlier and prepare service operations more effectively.
How does the Super Multi Box reduce downtime in solar parks?
In a solar park or large PV system, fault detection is not the only decisive factor. It is also important to understand how strongly a single fault affects ongoing operation. If an insulation fault or an abnormal string causes an entire inverter section to be shut down, this can quickly result in significant yield losses.
Read more →
The Super Multi Box supports a different approach. By monitoring and evaluating the individual strings, abnormal or faulty strings can be localized more quickly. Depending on the system concept, affected strings can be disconnected or narrowed down for service, while the remaining plant section can continue to be assessed or brought back into operation more quickly.
This significantly improves the serviceability of the system. Service teams receive more specific information, spend less time searching in the field and can decide more precisely where measurements, inspections or repairs are required.
The Super Multi Box is therefore not just a DC combiner, but a tool for operating large PV systems: it helps find faults faster, reduce plant downtime and increase the availability of the solar park.
What is the difference between a standard DC combiner and the Q3 Super Multi Box?
A conventional DC combiner combines PV strings and, depending on the design, contains protection components such as fuses, surge protection or disconnection options. Its main task is the electrical bundling of strings on the DC side. The Q3 Super Multi Box goes much further.
Read more →
It is a smart DC combiner for utility-scale PV plants and central inverter systems. In addition to DC connection technology, it integrates string monitoring, fault analysis, electronic DC disconnection and remote access options in one project-specific solution.
The main difference lies in transparency and controllability. With a standard DC combiner, the operator usually only sees that strings are being combined. With the Super Multi Box, it becomes visible what is happening at string level. Abnormal strings, reduced output or fault areas can be detected faster and handled more precisely.
This makes the Super Multi Box particularly suitable for systems where a standard combiner is no longer sufficient – for example in solar parks, large central inverter systems, PV systems with increased monitoring requirements or projects where faults should not lead to a complete shutdown of large plant sections.
Which PV systems is the Super Multi Box particularly suitable for?
Die Super Multi Box ist für große PV-Anlagen gedacht, bei denen viele Strings zusammengeführt und überwacht werden müssen. Dazu gehören insbesondere Solarparks, Freiflächenanlagen, große Gewerbedächer, Industrieanlagen und PV-Projekte mit Zentralwechselrichtern. Besonders sinnvoll ist der Einsatz, wenn mehrere dieser Punkte zutreffen:
Read more →
■ many PV strings per inverter section
■ central inverters or large DC collecting structures
■ high requirements for system availability
■ difficult troubleshooting in the case of insulation faults
■ long DC cable routes
■ need for string monitoring and remote access
■ service operations should be prepared more precisely
■ individual string faults should not unnecessarily shut down large parts of the system
The exact design is always project-specific. String quantity, protection concept, communication interfaces, monitoring requirements and integration into the overall system concept are defined according to the project.
In short
The Q3 Super Multi Box is a smart DC combiner for large photovoltaic systems where conventional DC combiners reach their limits. It combines string monitoring, fault localization, electronic DC disconnection and DC connection technology in one project-specific solution.
For operators, EPCs and technical asset managers, this means more transparency on the DC side, faster troubleshooting, more targeted service operations and better conditions for high system availability.
Patent-pending PV String Fault Discriminator
– Selective fault isolation with system
The patent-pending PV String Fault Discriminator is the central functional element of the Super Multi Box. It enables the selective detection and isolation of individual faulty PV strings within a DC combiner, thereby preventing a complete system shutdown in the event of insulation or string faults in central inverter architectures.
PV String Fault Discriminator
Individual string current measurement
Firefighter Switch
Plug & Play
Monitoring
Combiner for up to 24 strings
Universal communication
Remote maintenance
Surge protection T1+2
Technical background: Central inverters and insulation faults
In conventional DC combiner solutions, an insulation fault, arc fault, or string fault often causes all connected PV strings to be shut down together, as differentiated fault assignment at the string level is not possible. Particularly in central inverter architectures with only one MPPT, this leads to a complete standstill of the affected generator field – even though usually only a single string is actually faulty.
The Super Multi Box takes a different approach: it utilizes a central master logic in combination with the patented PV String Fault Discriminator to specifically identify faulty strings, shut them down selectively, and maintain the operation of the remaining generator fields.
The process in the event of an insulation fault
If an insulation fault occurs in a string, the inverter first detects an impermissible insulation state and initially shuts down the generator.
The Master Super Multi Box receives this error message and automatically initiates a structured identification process:
The result: No more complete system failures due to insulation faults
The Super Multi Box DC combiner works differently. Thanks to the patent-pending PV String Fault Discriminator, a fault does not lead to a blanket shutdown of the generator, but is instead systematically identified. Following the inverter’s fault message, the connected SMB units are automatically switched on sequentially, the fault-causing string is clearly localized and selectively isolated. The remaining part of the system continues to operate.
Conventional DC Combiner vs. Super Multi Box
In conventional DC combiner solutions, an insulation fault often leads to the shutdown of an entire generator section. Particularly in central inverter architectures with only one MPPT, this means: the inverter detects an impermissible insulation state and shuts down the affected generator section – even though usually only a single PV string is affected.
The consequence:
■ Complete standstill of a generator field
■ Manual, time-consuming troubleshooting in the field
■ Unnecessary yield losses
“Insulation faults are not uncommon in ground-mounted systems.
The new Q3 technology saves us days of troubleshooting – and thus hard cash!”
The Super Multi Box DC combiner works differently. Thanks to the patented PV String Fault Discriminator, a fault no longer leads to a blanket shutdown of all PV strings, but is instead systematically identified. Following the inverter’s fault message, the connected SMB units are automatically switched on sequentially, the fault-causing string is clearly localized and selectively isolated. The remaining PV strings or generator fields remain available and system operation is maintained.
OPEX advantage for operators
Particularly in ground-mounted systems in the MW range, insulation faults occur regularly due to moisture, animal bites, cable aging, connector problems, or mechanical stress. While conventional combiner solutions can lead to prolonged downtime, the Super Multi Box reduces:
Especially for utility-scale systems and central inverter architectures with one MPPT, the investment in intelligent DC combiner technology often pays for itself through a single avoided prolonged standstill. It is not the purchase price that counts – but the permanently secured system availability.
✔ Higher system availability
Selective fault isolation prevents the complete standstill of a generator field.
Only the actually faulty string is disconnected – the rest of the DC network continues to operate.
✔ Reduced OPEX costs
Automated identification replaces time-consuming manual troubleshooting in the field.
Fewer service calls, lower personnel costs, shorter fault duration.
✔ Faster ROI
In MW ground-mounted systems, even a single avoided prolonged standstill can compensate for the additional investment compared to a standard DC combiner.
Technical design of the Super Multi Box (DC Combiner up to 1,500 V)
Intelligent DC combiner up to 1,500 V DC – modular and customizable configuration
The Super Multi Box is designed as an intelligent DC combiner for photovoltaic systems up to 1,500 V DC. It combines multiple PV strings into one inverter input and extends the conventional combiner function with selective fault isolation, individual string monitoring, and communication interfaces.
Depending on project requirements, the following features are possible:
Smart DC Combiner for Central Inverters and Utility-Scale PV
The Super Multi Box combines multiple PV strings into a central inverter and extends conventional DC combiners with:
■ Selective string fault isolation
■ Individual string current measurement
■ Communication interfaces
■ Integrated firefighter switch
■ Intelligent monitoring functions
Ideal for:
■ Ground-mounted systems
■ Agri-PV
■ PV power plants in the MW range
■ Central inverters with 1 MPPT
Monitoring, Communication, and Remote Maintenance
The Super Multi Box is not just a DC combiner, but a communication-capable system for monitoring and optimizing the operation of PV generator fields. The combination of individual string current measurement, communication interfaces, and integrated logic provides a transparent overview of the status of the entire DC network.
The Super Multi Box combines selective fault isolation, individual string monitoring, and communication interfaces in an intelligent DC combiner system for utility-scale PV systems.

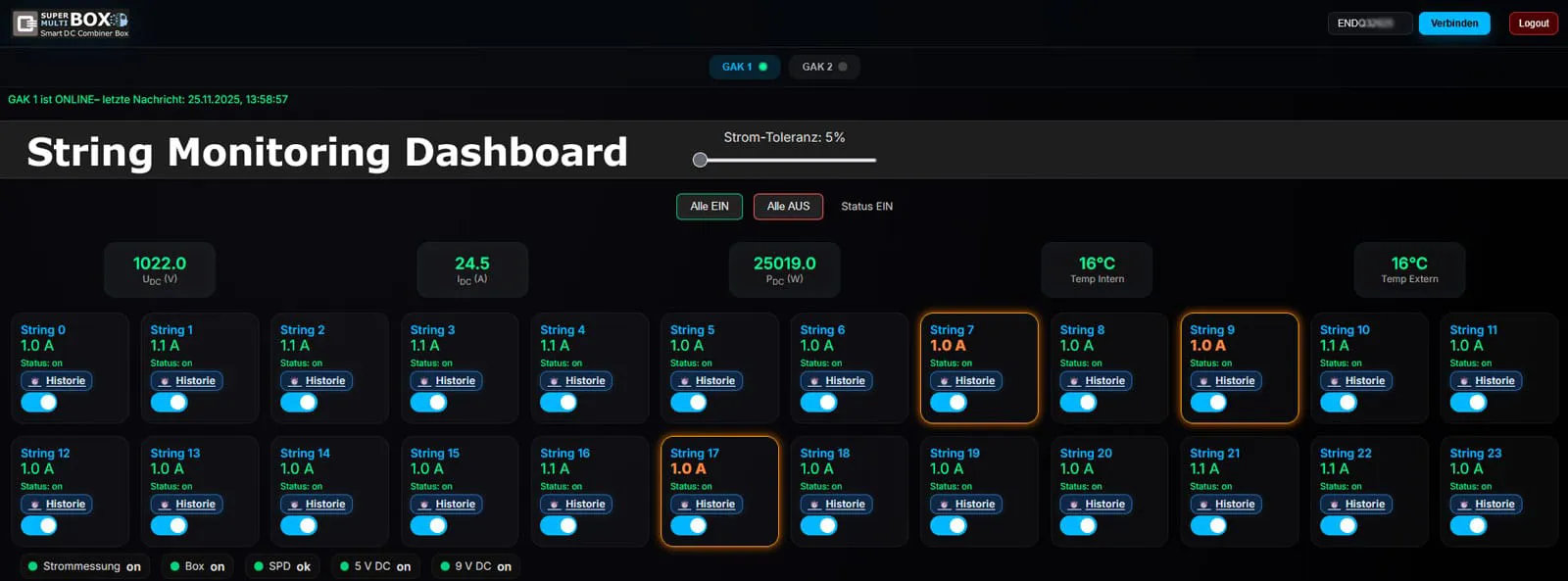

GUI | Web Dashboard & String Monitoring
Optional web-based monitoring dashboard for visualizing:
■ Individual string currents
■ Status messages
■ Event logs
■ Fault states
The display is clearly organized at the string level and enables rapid identification of deviations.
Modbus RS485
Standardized Modbus RTU interface (RS485) for integration into:
■ PV inverters
■ Data loggers
■ SCADA systems
■ Higher-level monitoring platforms
Enables the structured transfer of measurement and status data.
Ethernet
Network-based communication for:
■ Direct integration into IP structures
■ Remote access
■ Integration into central operational management systems
■ Surge protection (SPD) status monitoring
■ Monitoring the status of optionally integrated SPD modules.
Status messages can be integrated into the monitoring system, allowing maintenance needs for MW ground-mounted systems to be identified early.
Individual string current measurement
Recording and evaluation of current values for every single PV string. Advantages:
■ Rapid identification of underperformance
■ Early detection of string deviations
■ Data-driven performance analysis
■ Self-powered via DC/DC
The internal electronics are powered from the DC side via an integrated DC/DC power supply. This means no external auxiliary power connection is required, simplifying installation and system integration.
More transparency – fewer service calls
The combination of monitoring, fault discrimination, and remote communication creates a system that:
■ Automatically localizes faults
■ Minimizes downtime
■ Reduces service calls
■ Sustainably lowers OPEX
■ Ensures system availability
Fachmedien und Presseberichte zur Q3 DC-Anschlusstechnik: Generatoranschlusskasten, DC-Combiner, Stringboxen
Which DC combiner is suitable for solar parks with central inverters and string monitoring?
For solar parks and utility-scale PV plants with central inverters, a smart DC combiner with string monitoring is suitable when many PV strings need to be combined on the DC side and monitored individually. The Q3 Super Multi Box was developed exactly for this system architecture: it combines DC connection technology, individual string current measurement, protection components, electronic DC disconnection, communication interfaces and selective fault isolation in one project-specific solution.
Especially in central inverter architectures, string-level monitoring is important because the inverter often only sees aggregated values. A single string fault, insulation fault or abnormal current value can therefore be difficult to localize. The Super Multi Box makes deviations on the DC side visible earlier and helps identify and isolate faulty strings more precisely.
Why is a standard DC combiner not always sufficient in a solar park?
A standard DC combiner combines PV strings and, depending on the design, integrates fuses, surge protection and disconnection options. For standard installations, this can be sufficient. In utility-scale PV plants with central inverters, however, the requirements are different: many strings, large DC collecting structures, long cable routes and high availability requirements often make simple string combining insufficient.
The Q3 Super Multi Box goes further. It combines the function of a DC combiner with string monitoring, fault localization, electronic DC disconnection and remote communication. As a result, faults are not only detected at inverter level, but can also be narrowed down at string level.
Comparison: Super Multi Box, Custom String Combiner Box, or GAK Lite
Which DC combiner solution fits your project?

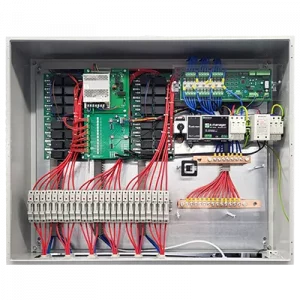

Super Multi Box
Intelligent DC Combiner
Smart DC combiner with active fault detection – developed for central inverter architectures and utility-scale PV systems with advanced analysis and optimization requirements

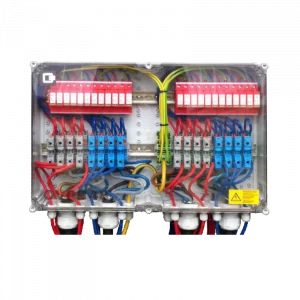

Custom String Combiner Box
DC Combiner
Individually planned DC combiner box for PV systems up to 1,500 V DC – ideal for technically demanding commercial, industrial, and PV power plant systems
GAK LITE
Standard Solution
Standardized string box for 1 | 2 | 3 MPPT with surge protection – for projects with clearly defined standard requirements
Planning, Production, and Testing in Germany
Every Super Multi Box and every Q3 generator junction box is planned on a project-specific basis, electrically designed, and fully manufactured in Germany. From dimensioning and mechanical integration to final testing, every step follows defined quality standards – transparently documented and tailored to the respective system.
The Super Multi Box is not just a component assembly, but a tested system solution. The combination of:
■ Custom design
■ Selective fault isolation
■ Integrated measurement technology
■ Communication interfaces
creates a technically coordinated DC combiner system for high system availability, long-term operational reliability, and reduced service calls in the MW range.
Particularly in utility-scale and MW ground-mounted systems, the electrical design of the DC combiner system determines system availability, service effort, and long-term operational reliability.
Project Inquiry DC Combiner Super Multi Box
Would you like to have the Super Multi Box designed for your PV project – including PV String Fault Discriminator, optional individual string current measurement, communication (Modbus/Ethernet), and matching protection components?
Using the inquiry form below, we capture your project data in a structured and transparent manner – so that you quickly receive a technically suitable and economical system solution.
You are welcome to send string plans, wiring/circuit diagrams, inverter data, Isc values, as well as grounding and protection concepts directly. Based on this, we check the boundary conditions (including number of strings, architecture, monitoring requirements) and configure the Super Multi Box to fit your project. If any questions arise, we will coordinate the details directly with you – otherwise, you will receive a project-specific offer promptly.
Project Inquiry
Super Multi Box
Form for project-specific configuration of your box – including PV string fault discriminator, surge protection, individual string current measurement and communication interfaces.
Technical Documentation DC Connection Technology
Datasheets, technical specifications, interface description, tender texts and documentation for intelligent DC combiner technology.
DC Combiner
Super Multi Box
Super Multi Box – intelligent DC combiner up to 1,500 V DC with patented PV String Fault Discriminator, selective fault isolation, and individual string monitoring.
DC Combiner
Boxes
Individually configured DC combiner solutions without active fault discrimination – suitable for classic system architectures or project-specific special requirements.
