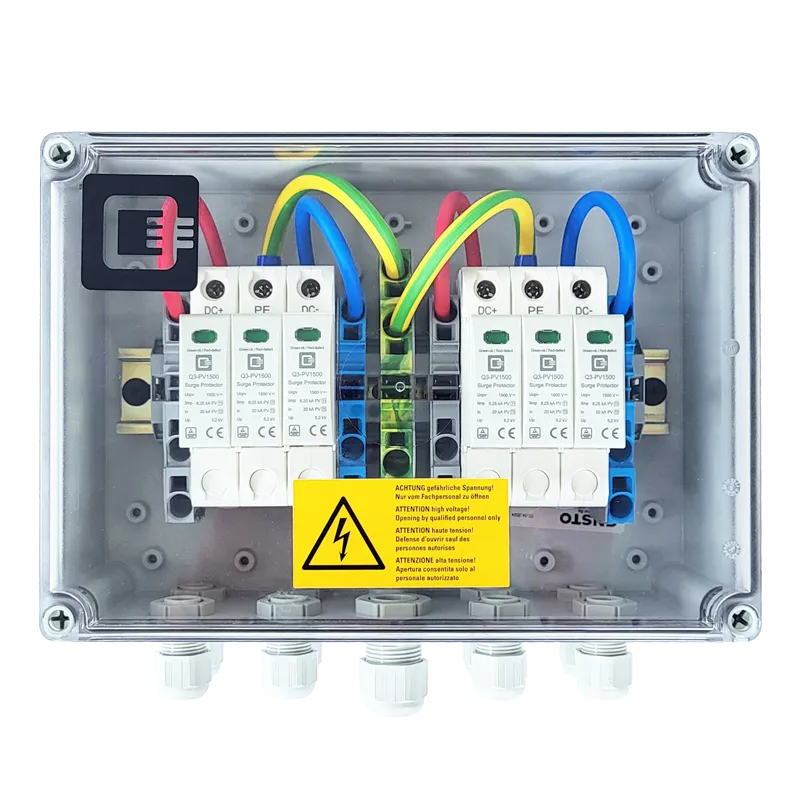

GAK LITE – preconfigured generator junction box with Type 1+2 surge protection up to 1,500 V DC
Standardized DC combiner box for PV systems with 1–3 MPPT – including Type 1+2 surge protection, electrically tested, and available at short notice.
Applications of the GAK LITE – standard solution with Type 1+2 surge protection
The GAK LITE is used in particular for PV systems with clearly defined string and protection requirements where a cost-effective, quickly available standard solution is required.
Commercial and logistics roofs with recurring string structures
For standardized PV systems with integrated Type 1+2 surge protection
Cost-effective series solution with fast availability
Technical design of the GAK LITE (DC combiner 1,500 V DC)
The GAK LITE is a preconfigured DC combiner solution for photovoltaic systems with clearly defined technical requirements. It is particularly suitable for projects with 1–3 MPPT where a cost-effective, standards-compliant, and quickly available generator connection solution is required.
The standardized design significantly reduces planning effort—without compromising on safety or the protection concept.
Despite the high protection rating, the generator junction box must be installed in a weather-protected location. Installation under roof overhangs, in technical areas, or similarly protected mounting zones is recommended to ensure long-term operational reliability.
Integrated Type 1+2 DC surge protection

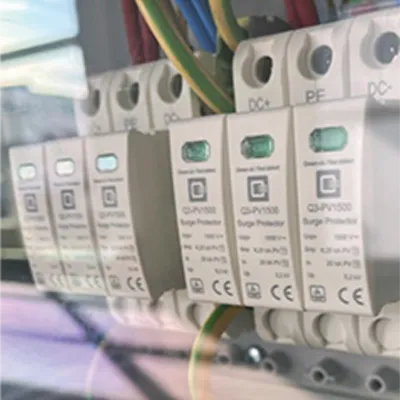

The GAK LITE is equipped as standard with the Q3-PV1500 Type 1+2 combined arrester.
The surge protection is designed for PV systems up to 1,500 V DC and reliably protects inverters and downstream components against transient overvoltages caused by lightning or switching events. The arrester is specifically designed for use in generator junction boxes, string boxes, and inverter environments.
Variant overview – 1, 2 or 3 MPPT
The GAK LITE is available in three standardized versions and covers typical inverter concepts with 1 to 3 MPPT. All variants are equipped with integrated Type 1+2 DC surge protection and are designed for system voltages up to 1,500 V DC. The preconfigured design enables fast project implementation for recurring system concepts.
GAK LITE 1 MPPT
Standard solution for inverters with one MPP tracker.
GAK LITE 2 MPPT
For inverters with two independent MPP trackers.
GAK LITE 3 MPPT
For higher-performance inverters with three MPP trackers.
Design, manufacturing and testing in Germany
The GAK LITE is designed, assembled, and tested in Germany. Even as a standard solution, each unit is subject to a clearly defined quality and test structure. The design is standards-compliant for PV systems up to 1,500 V DC, taking into account applicable installation and protection requirements.
When is GAK LITE the right solution—and when is a custom GAK?
Not every PV system requires an individual custom solution. While the GAK LITE was developed for clearly defined standard concepts, the custom GAK offers maximum technical freedom for complex requirements.
GAK LITE
The GAK LITE is the right choice if:
◼︎ the system concept is clearly defined
◼︎ 1–3 MPPT are sufficient
◼︎ a cost-effective solution that is available at short notice is required
Custom GAK
A custom GAK is recommended if:
◼︎ special protection or grounding concepts are required
◼︎ high string counts or special connection requirements apply
◼︎ the project must be planned with technical flexibility
Project inquiry for GAK LITE – request quantity and variant
Would you like to use the GAK LITE for your project and need a quotation? Select the appropriate variant (1, 2, or 3 MPPT) and let us know the required quantity.
Using the inquiry form below, we capture all relevant key data quickly and in a structured way—and provide you with a suitable quotation including tiered pricing.
As a standardized DC combiner solution, the GAK LITE is available at short notice and is particularly cost-effective for larger quantities. We offer attractive tiered pricing for recurring system concepts in the commercial and industrial sector. If required, we will also support you in selecting the right variant.
Project inquiry GAK LITE
Request your personal quotation via this form for the GAK LITE 1–3 MPPT variants—depending on quantity, with attractive tiered pricing.
